Creating a stitching-via grid with pcbnew's Python API
Generate a full grid of ground-connected stitching vias by script, instead of one via at a time — with pcbnew or KiCad's IPC API.

The via creation tutorial places a single one. A stitching-via grid — tied to ground all around a copper pour to improve HF current return — is built with the same API, inside a double loop over rows and columns.
Looping over rows and columns
Each via is created, positioned, and connected to the net within the same iteration:
import pcbnew
board = pcbnew.GetBoard()
from pcbnew import PCB_VIA, VECTOR2I, FromMM
rows, cols, spacing = 4, 4, 5 # mm
gnd = board.FindNet("GND")
for row in range(rows):
for col in range(cols):
via = PCB_VIA(board)
via.SetPosition(VECTOR2I(FromMM(20 + col * spacing), FromMM(20 + row * spacing)))
via.SetWidth(via.TopLayer(), FromMM(0.6))
via.SetDrill(FromMM(0.3))
via.SetNet(gnd)
board.Add(via)Same loop structure on the IPC API side: position is set in millimeters, but diameter and drill size are raw nanometers that need converting with from_mm. Each via is a brand-new object, so it’s created on the board with create_items:
from kipy import KiCad
from kipy.board_types import Via, Net
from kipy.geometry import Vector2
from kipy.util.units import from_mm
board = KiCad().get_board()
rows, cols, spacing = 4, 4, 5 # mm
gnd = Net(name="GND")
for row in range(rows):
for col in range(cols):
via = Via()
via.position = Vector2.from_xy_mm(20 + col * spacing, 20 + row * spacing)
via.diameter = from_mm(0.6)
via.drill_diameter = from_mm(0.3)
via.net = gnd

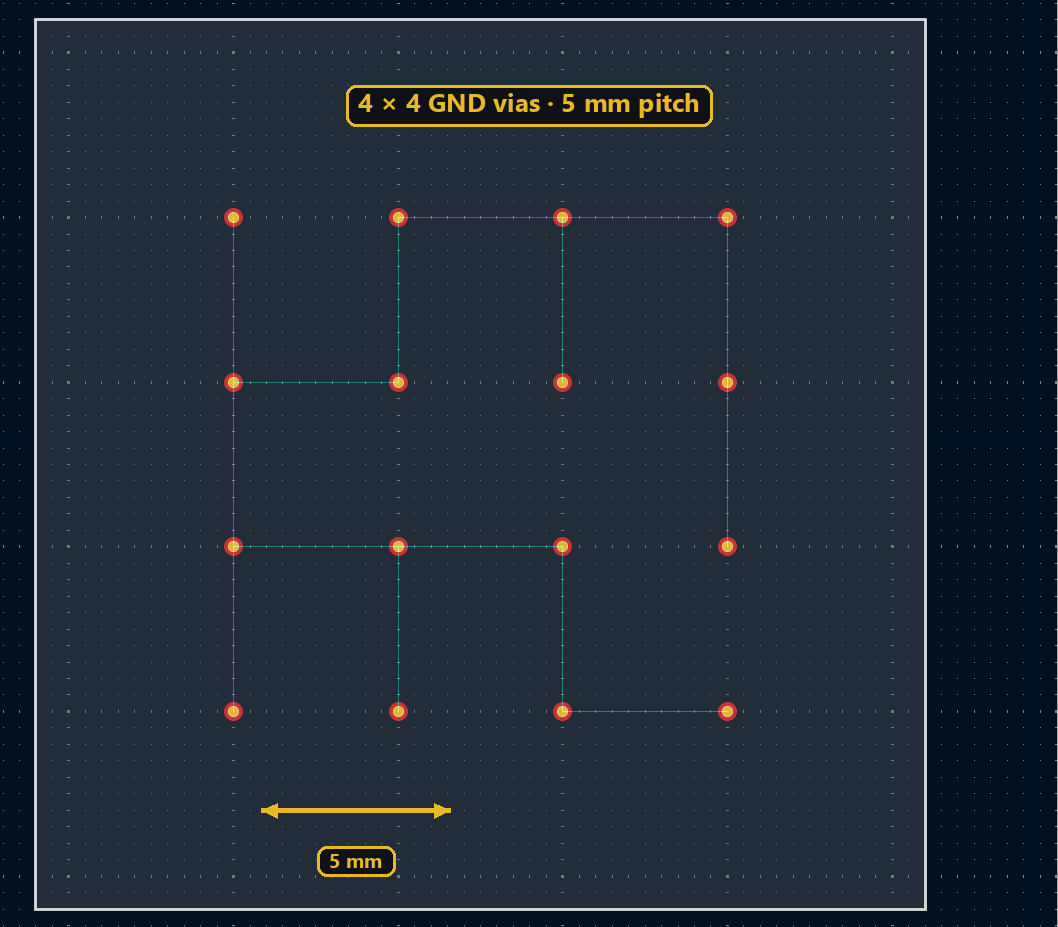

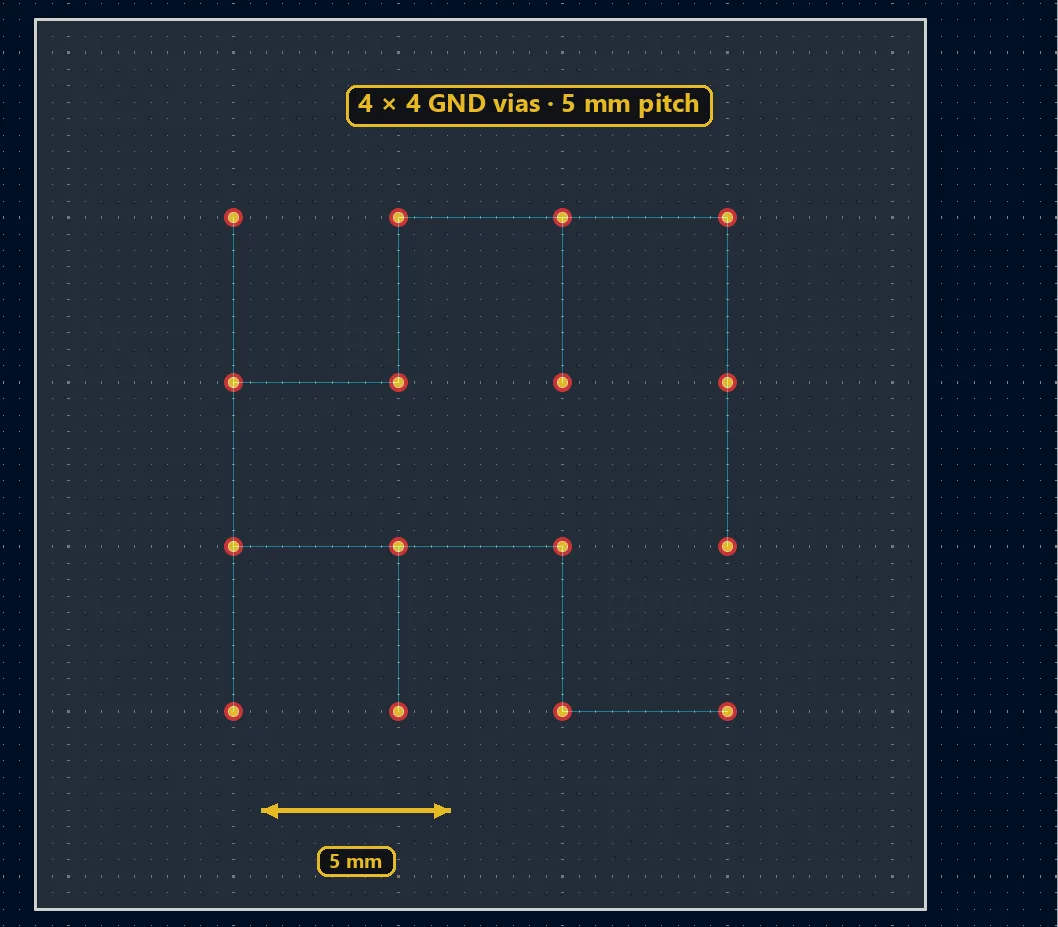

board.create_items(via)Try it below: adjust rows, columns, and spacing to see the via grid recompute.
Going further
For stitching that’s actually useful in practice, vias are usually only placed inside the outline of an existing copper zone — a point-in-polygon test before each board.Add(via) is enough to filter the grid down to the ground plane’s real shape.
