Placing a grid of footprints with pcbnew's Python API
Position several identical footprints in a grid by script — useful for an LED panel or a row of connectors — with pcbnew or KiCad's IPC API.
The footprint placement tutorial handles a single component at a time. As soon as you’re dealing with an LED panel or a row of identical connectors, a loop that computes each position from a row count, column count, and spacing replaces dozens of clicks with a few lines of code.
Getting the list of footprints
Fetch each footprint by its reference, in the order they should appear in the grid:
refs = ["D1", "D2", "D3", "D4", "D5", "D6"]
footprints = [board.FindFootprintByReference(ref) for ref in refs]With the IPC API, index all footprints by reference first, then rebuild the list in the order you want:
refs = ["D1", "D2", "D3", "D4", "D5", "D6"]
by_ref = {fp.reference_field.text.value: fp for fp in board.get_footprints()}
footprints = [by_ref[ref] for ref in refs]Computing each footprint’s position

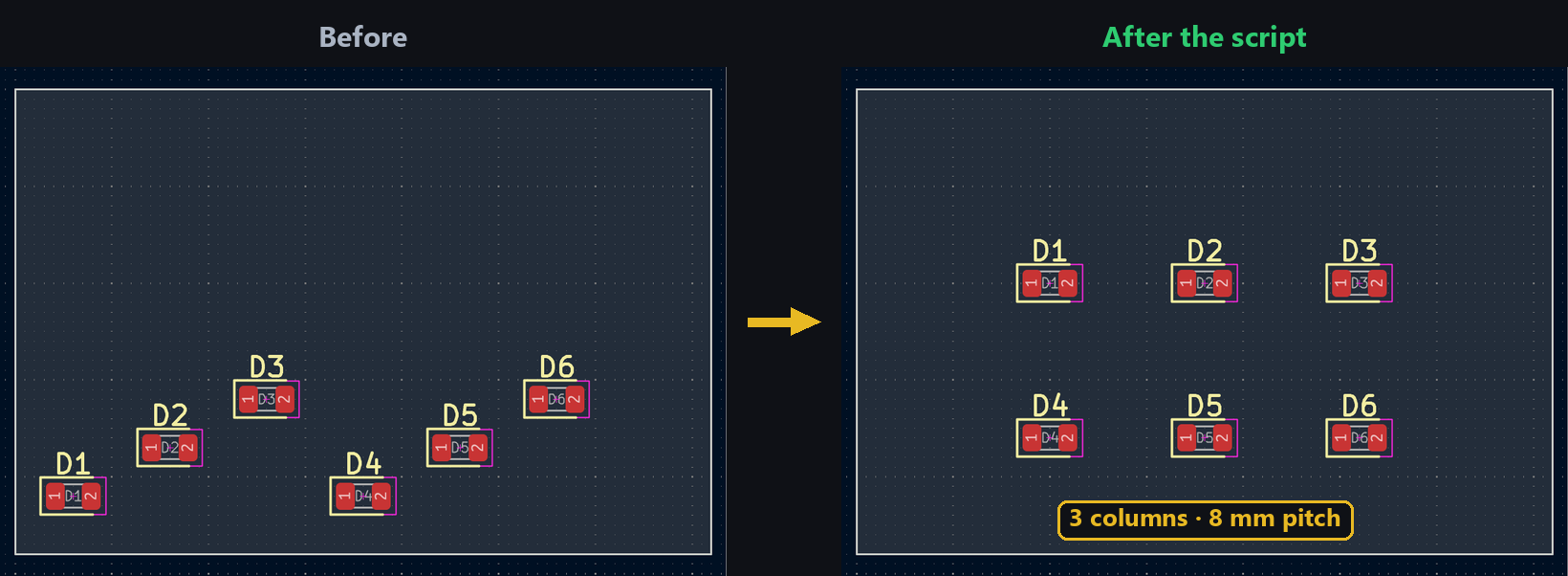

The loop index i gives the row and column through division and modulo:
from pcbnew import VECTOR2I, FromMM
cols = 3
spacing = 8 # mm
for i, fp in enumerate(footprints):
x = 20 + (i % cols) * spacing
y = 20 + (i // cols) * spacing
fp.SetPosition(VECTOR2I(FromMM(x), FromMM(y)))Same grid math, with the IPC API working directly in millimeters:
from kicad.geometry import Vector2
cols = 3
spacing = 8 # mm
for i, fp in enumerate(footprints):
x = 20 + (i % cols) * spacing
y = 20 + (i // cols) * spacing
fp.position = Vector2.from_mm(x, y)
board.update_items(fp)Try it below: adjust rows, columns, and spacing to see the grid recompute.
Going further
The same principle combines nicely with a stitching-via grid around the panel, or generalizes to a circular layout by swapping the x, y math for a position on a circle instead of a grid.
